The dual-layer ESD protection system that’s becoming the standard for PCB handling, SMT production lines, and sensitive component logistics across Europe.

Published April 2026  |  Yufa Polymer Technical Blog  |  8 min read

The Hidden Cost of Electrostatic Discharge in Electronics Manufacturing

Electrostatic discharge (ESD) remains one of the most persistent and expensive failure modes in electronics manufacturing. According to the ESD Association, ESD-related damage accounts for 8–33% of all electronic component failures, costing the global industry an estimated $5 billion annually in rejected parts, field failures, and reduced product reliability.

The challenge intensifies when components move between workstations. A bare PCB traveling from an SMT pick-and-place machine to an AOI inspection station can accumulate thousands of volts of static charge from friction with unprotected surfaces — enough to destroy sensitive ICs, MOSFET gates, or flash memory chips without any visible sign of damage.

This is precisely why Europe’s leading electronics manufacturers have converged on a deceptively simple but highly effective solution: pairing injection-molded ESD PP trays with precision-cut anti-static EVA foam liners.

The Tray + Foam Liner System: Simple Design, Serious Protection

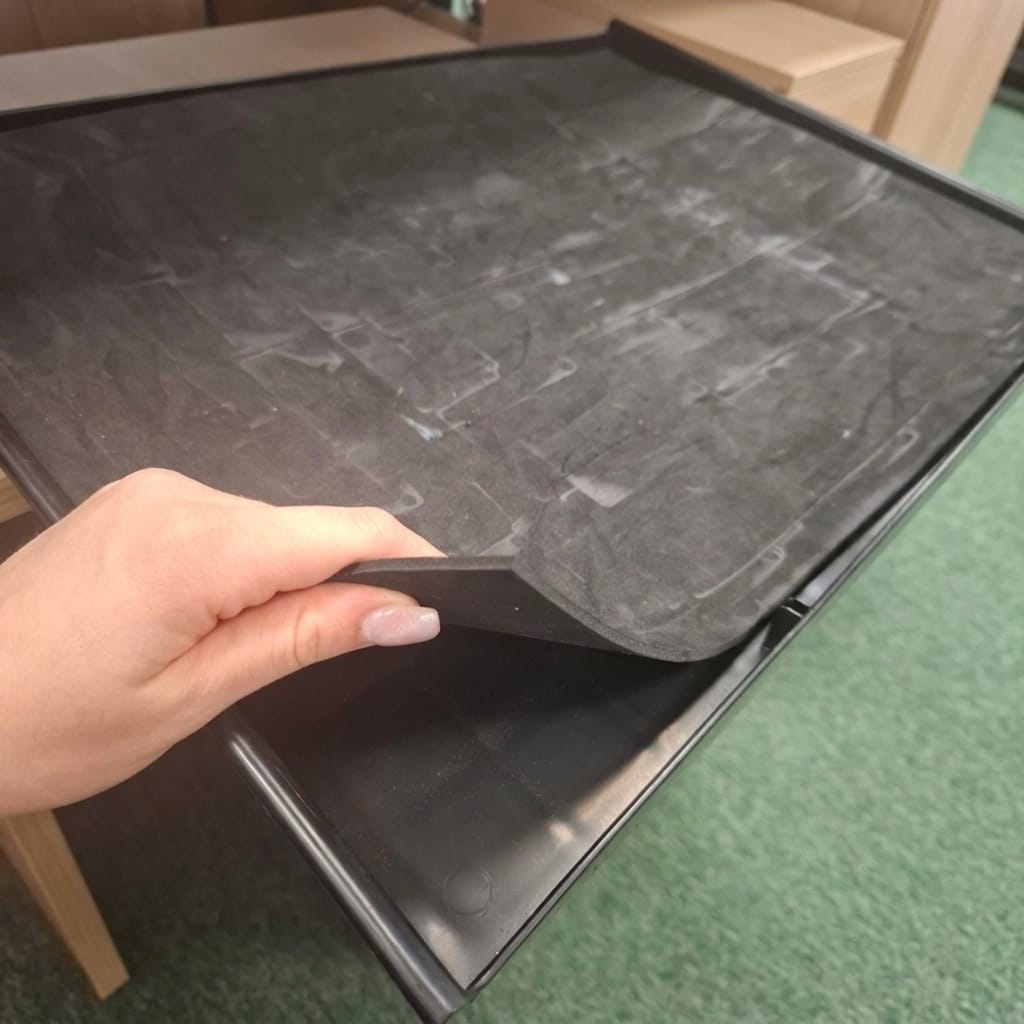

The concept is straightforward: a rigid, injection-molded ESD polypropylene tray (View ESD PP Tray Products) provides structural integrity and stackability, while a 3mm anti-static EVA foam sheet (View ESD EVA Foam Products) lines the bottom surface to provide cushioning, surface protection, and an additional ESD-safe contact layer.

Together, they form a dual-layer ESD protection system: the tray dissipates static charge across its surface (surface resistivity 10⁴–10¹¹ Ω), while the foam prevents physical contact damage and triboelectric charging when components are placed or removed.

Product Specifications

ESD PP Tray

ESD EVA Sheet

Where This System Gets Deployed

SMT Production Lines

Work-in-progress (WIP) trays shuttle bare and assembled PCBs between pick-and-place, reflow soldering, and AOI inspection stations. The foam liner prevents board flex and solder joint stress during transit.

Inter-Facility Transport

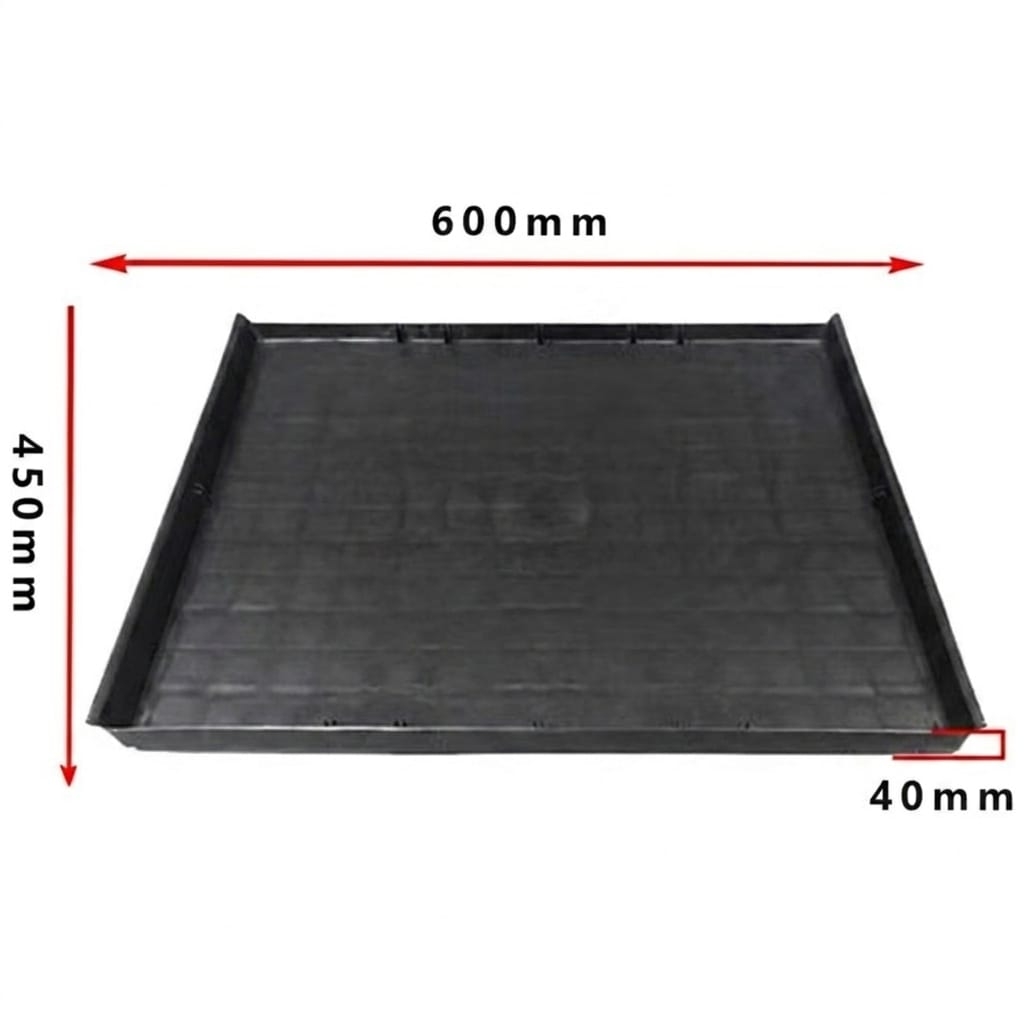

Stacked trays with foam liners travel between manufacturing buildings or from SMT to final assembly. The 600×450mm footprint fits euro-pallets perfectly — 4 trays per layer, maximizing logistics efficiency.

Buffer Storage & WIP Staging

Between production stages, components rest in ESD-safe storage racks. The shallow 40mm tray height enables high-density vertical stacking while the foam keeps parts stationary and protected.

Display Panel Handling

LCD, OLED, and TFT panels require both ESD protection and scratch-free surfaces. The soft EVA cushion eliminates glass-on-plastic contact marks while the tray’s raised edges prevent sliding.

Semiconductor & Module Assembly

Power modules, sensor arrays, and other flat electronic sub-assemblies benefit from the uniform, non-abrasive foam surface combined with the structural rigidity of the injection-molded tray.

Why ESD Trays and EVA Foam Liners Work Better Together

Neither the tray nor the foam alone delivers complete protection. Here’s why the combination is more than the sum of its parts:

The rigid tray handles logistics and stacking; the soft foam handles component-level surface protection. Together, they create a complete ESD-safe handling ecosystem.

The Business Case: ESD Damage in Numbers

Industry data consistently shows that improper component handling is the #1 cause of latent ESD damage — defects that pass QC but fail in the field.

Source: ESD Association, IPC/JEDEC industry surveys. Figures represent composite industry averages.
